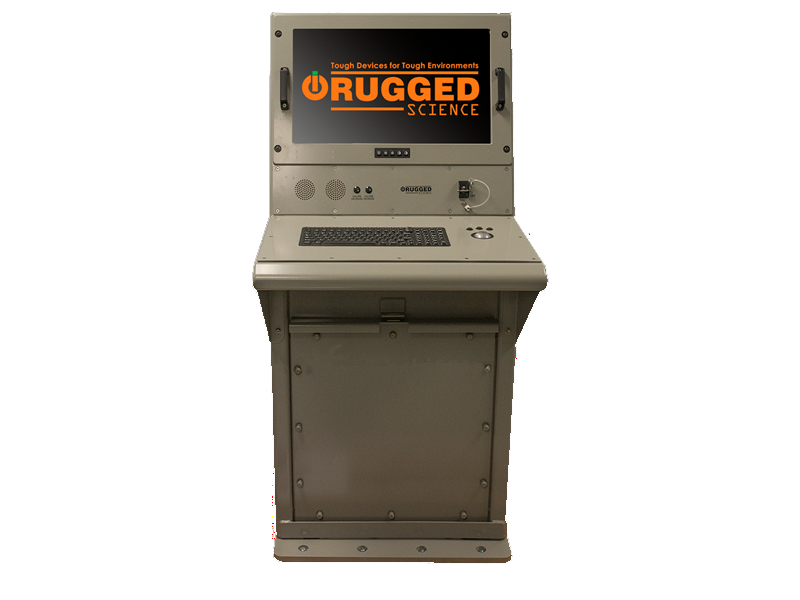

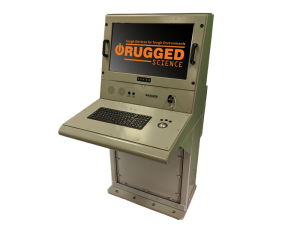

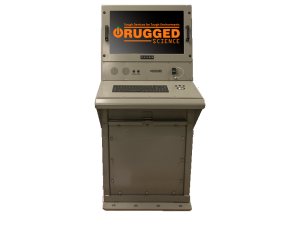

Single Display Sitting Computer Console
Featured Specifications
- Stand-up and Sit-down operator variants
- Fanless, -20°C to 60°C Operating Temperature
- 24inch 1920x1080 High Definition Display
- 5-wire Resistive Touchscreen
- Internally mounted Rugged Science standalone computer
- Ruggedized 114-key keyboard with full numeric keypad and 24 Function Keys
- Totally waterproof IP68 ruggedized trackball with solid-state optical navigation technology
- Front access maintenance panel with locking provision for physical security
- Sealed Side and Rear Cable access
- IP65 Ingress Rating
Description
Our Sit-Down Single Monitor Workstation Console meets MIL-STD-1472G Human Factors Engineering for optimal user comfort and productivity. The unit is fanless and passively cooled without the need for shock isolators when hard-mounted to the deck. Built with an innovative and cost-effective “box-in-box” design, our consoles keep price and obsolescence issues in check.
The console features a 24 inch touchscreen-enabled LCD monitor with 1920x1080 wide-screen resolution. A Rugged Science MilCortex 3000 MIL-STD PC is mounted internally to a plate, allowing for easy maintenance and future updatability. A lockable front access panel provides convenient access for maintenance activities. The workstation consoles meet or exceed MIL-S-901D Grade A Shock, MIL-STD-167 Vibration, and MIL-STD-461F for EMI.
Technical Specifications
| ITEM | |
| CPU options | Dual Core i3/i5 Quad/Six-Core i7/Xeon |
| Weight | 173 lbs fully loaded |
| Dimensions (W x H x D) | 26in x 53.31in x 31in |
| Keyboard | 114-key IP67 Keyboard with full numeric keypad and 24 function keys |
| Trackball | IP68 Ruggedized 3-button trackball with solid-state optical navigation |
| Monitor | 1920 x 1080 24 in flat panel display with 16:9 aspect ratio |
| Speaker | Internal110dB speaker with push-button volume control |
| Mounting | Hard mount foundation bolted to deck. No shock isolators. |
| Operating Temperature | -20°C to 60°C, fanless and passively cooled |
| Maintenance Access | Front access panel with locking provision for physical security |
| External Cabling Access | Environmentally sealed side and rear cable access |
| Power Input |
External input: 90 - 264 VAC (Operating)
115/230VAC (Nominal) 47-63Hz
|
| Power Consumption | 112 Watts (Nominal) (0.97 amps, 115VAC) |
| Power Distribution & Fusing |
PDU installed in console base to allow safe connection for computer and monitor.
2 fuses (2A); delat/wye power
|
| Environmental | Humidity: 0-95% Shock: MIL-STD-901D Grade A Vibration: MIL-STD-167-1A EMI: MIL-STD-461G Power: MIL-STD-1399 |
