Mission Command Console

Integrated Rugged Command & Control for Shipboard Operations

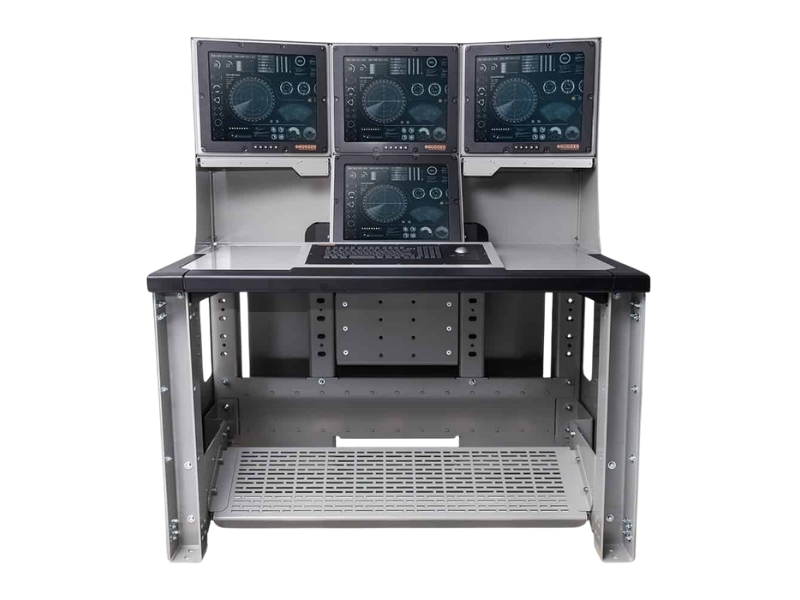

The Mission Command Console is a rugged, fully integrated operator workstation designed for command and control applications aboard naval vessels and other mission-critical defense platforms. Combining distributed embedded computing, multi-display visualization, operator controls, networking, and power management within a single shipboard-ready system, the console provides centralized access to critical mission data and applications while simplifying system integration.

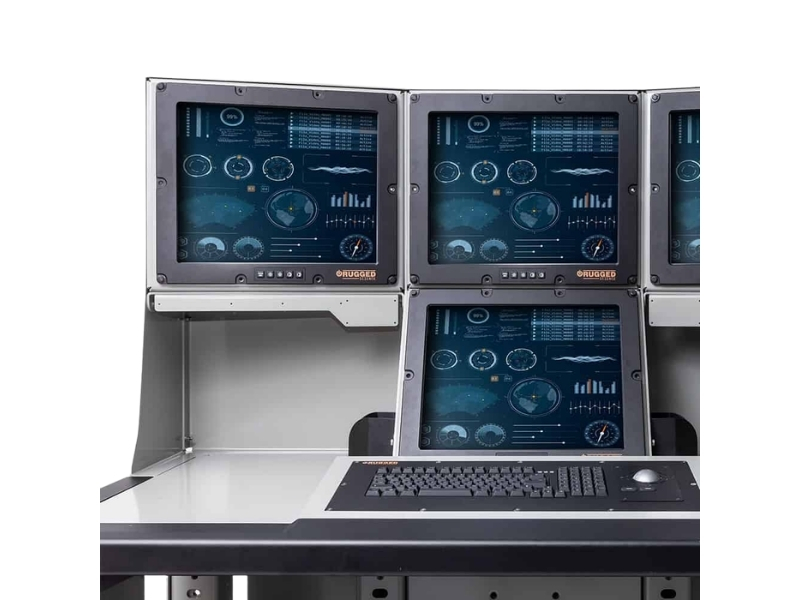

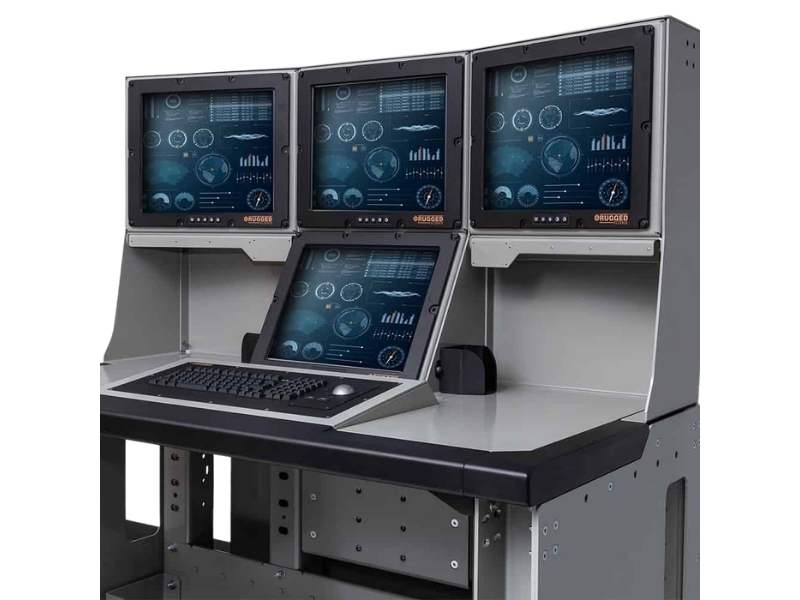

Built around three MILCORTEX 4000 rugged embedded computers, the Mission Command Console provides dedicated primary, secondary, and data repository processing within a unified architecture. Four 19-inch rugged flat panel displays support simultaneous visualization of multiple data sources, while an integrated touchscreen presentation manager and KVM switching enable efficient control across connected computing resources.

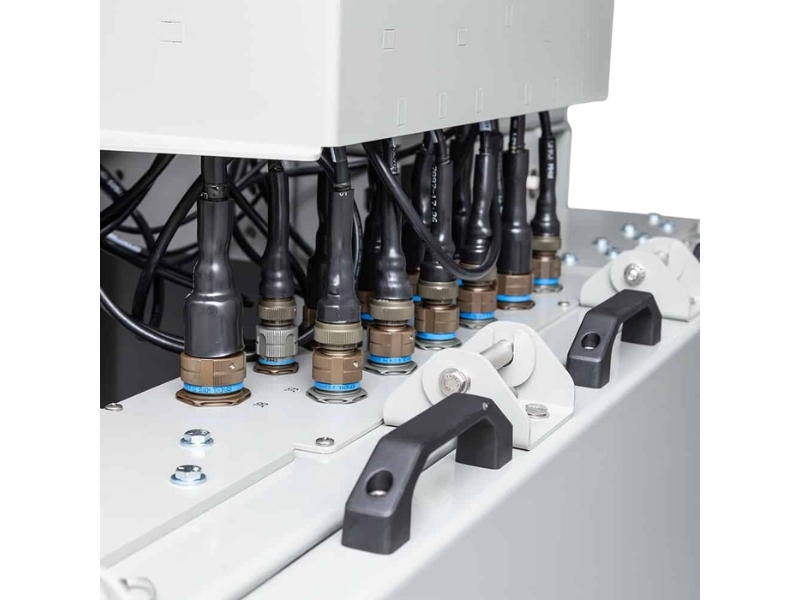

A panel-mounted rugged trackball keyboard provides reliable operator input without requiring external peripherals. The integrated system also includes data acquisition capabilities, field I/O connectivity, multi-port Gigabit Ethernet networking, UPS power, and battery backup to support continuous operation across demanding shipboard applications.

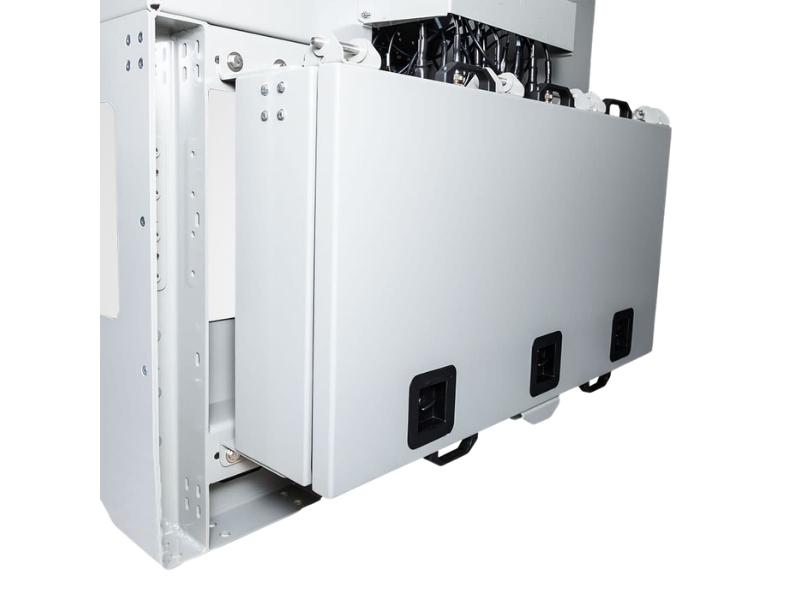

Engineered for direct installation aboard naval vessels, the Mission Command Console features a rugged enclosure designed for foundation mounting and integration with ship power, grounding, and network infrastructure. Compliance with MIL-STD-810H and MIL-STD-461G, MIL-STD-167-1A vibration requirements, and MIL-DTL-901E Grade A shock requirements supports reliable performance in demanding maritime environments.

With computing, visualization, operator control, networking, and power management integrated into one rugged platform, the Mission Command Console provides a configurable foundation for naval command and control, mission management, situational awareness, surveillance, and other mission-critical shipboard applications.
