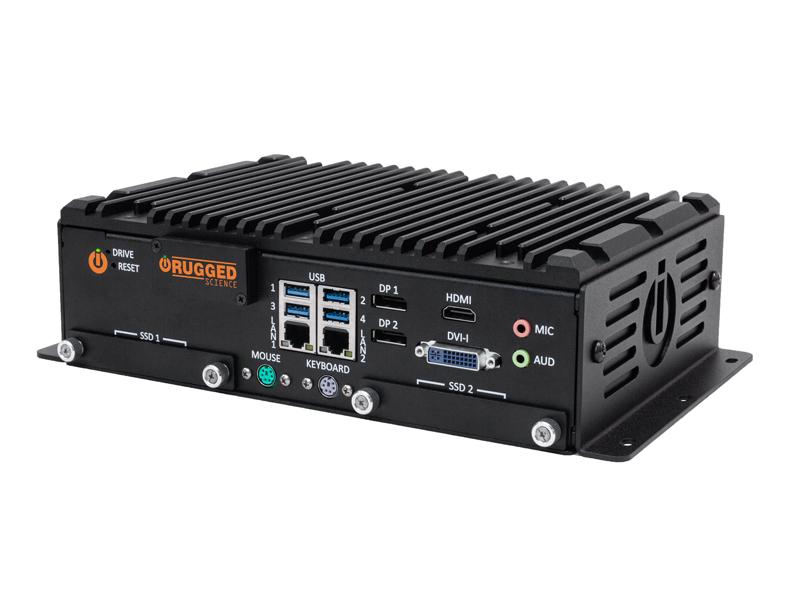

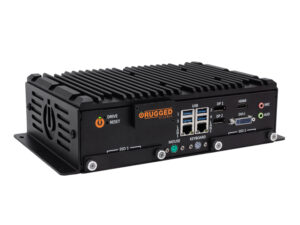

MILCORTEX 4000 16-Core Rugged Mil-Spec Computer
[breadcrumb]
Featured Specifications
- Up to 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S)
- 2 DDR4 3200MHz Memory, up to 64GB
- Fanless -40°C to 70°C Operating Temperature
- Up to 9 Independent 2.5G LAN with 4 IEEE 802.3at PoE+;
- 2 Front-access 2.5" SSD Tray
- 11V to 50V DC-in, Software Ignition Control;
- Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0
- 6 USB 3.2 Gen 2, Up to 4x COM
- Supports 4 Independent Displays, up to 8k resolution
Description
Created for the battlefield, bridge, or mission control, the Rugged Science MILCORTEX 4000 is a military grade embedded computer designed to meet the highest standards of performance, durability, and security. It can deliver fast and flexible connectivity for any network environment, thanks to its support for both Copper and Fiber Optic networks up to 10GbE. It can also withstand extreme temperatures, shocks, vibrations, and electromagnetic interference via its ruggedized design and stringent mil-spec testing.
Powerful Computing
Powered by an Intel 12th Gen Alder Lake-S CPU with up to 16 physical cores, the MILCORTEX 4000 can accommodate 64 GB of ECC/non-ECC RAM, dual 2.5in SSDs, and features support for GPU accelerators to enable advanced AI edge computing solutions. Native support for Intel® vPro, TPM 2.0 and Time- Sensitive Networking (TSN).
Flexible Expansion
Designed with multiple connectivity options for maximum application flexibility, the MILCORTEX 4000 can optionally support up to 9 Independent 2.5G LANs with 4 IEEE 802.3at PoE+, 2 Fiber LANs up to 10GbE, 6 USB 3.0, miniPCIe and m.2 expansion ports, SUMIT expansion ports, native support of 8k graphics, and up to 4 independent displays.
The MILCORTEX 4000 has an innovative mechanical design that enables a fanless, passive approach to cooling. Fans are loud, dirty, and prone to failure, impacting overall reliability. With no moving parts, the MILCORTEX is completely solid state, ensuring a silent, ultra-reliable computing solution in operating temperatures of -40°C to +70°C.
Common Computing

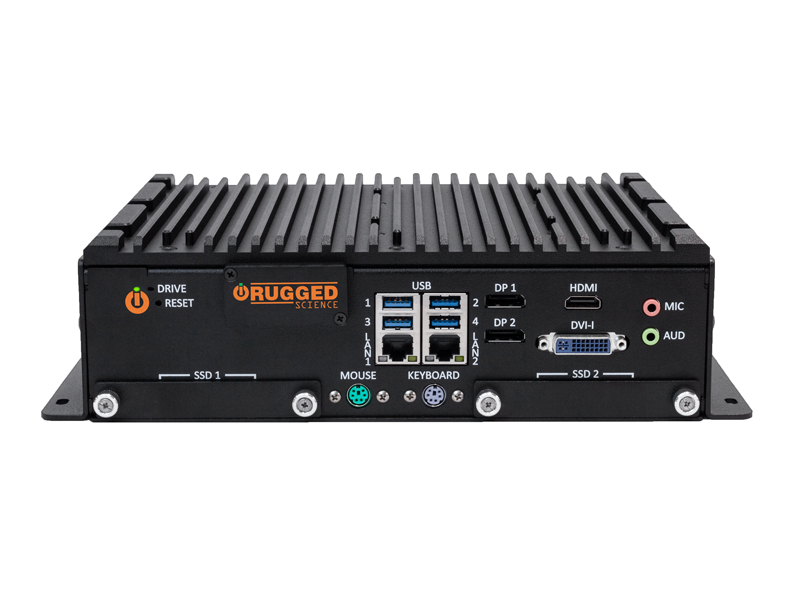

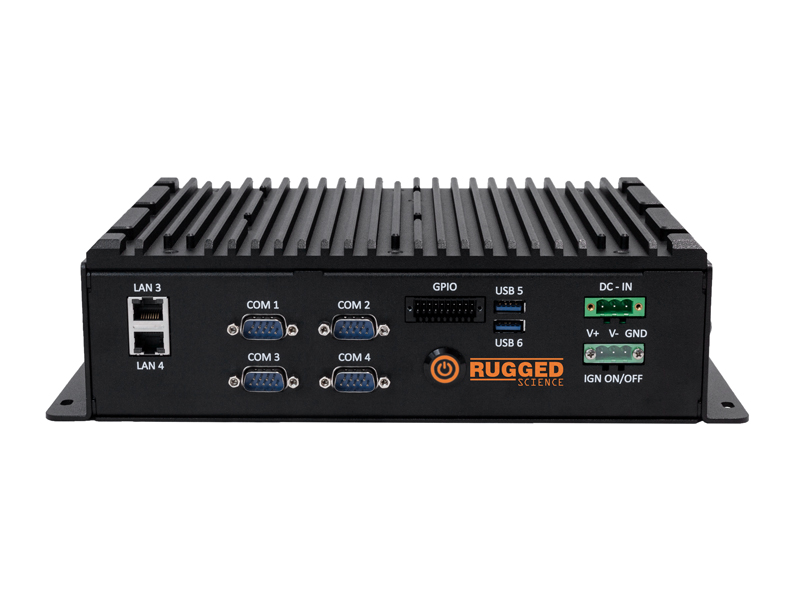

The MILCORTEX 4000 is designed as a common computing platform that offers seamless connectivity with nearly any device via the front and rear faceplates. Internal expansion ports can further enhance I/O alternatives to meet many custom application requirements. Contact a Rugged Science sales engineer for MILCORTEX configuration options.
Technical Specifications
| System | |
| Processor | 16-core 12th Gen Intel® Core™ i9/i7/i5/i3 Processor (Alder Lake-S) |
| Chipset | Intel® R680E |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 3200MHz SO-DIMM, up to 64GB |
| OS | Windows 11, Linux |
| I/O Interface | |
| Serial | Up to 4 COM RS-232/422/485 |
| USB | 6 USB 3.2 Gen 2 |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| LED | Power, HDD, PoE, Wireless |
| RTC Battery | Front-access RTC Battery |
| Expansion | |
| Mini PCIe | 1 Mini PCIe Socket (Optional) |
| M.2 |
- 1 M.2 Key B Socket (3042/3052, SATA/USB 3(Default)/USB 2)
- 1 M.2 Key E Socket (2230, PCIe x2/USB)
|
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics | |
| Graphics Processor | Intel® UHD Graphics 770/730 driven by Intel® Xe Architecture |
| Interface |
4 independent displays :
- 2 DisplayPort : Up to 7680 x 4320 @60Hz/5120 x 2880 @60Hz - 1 DVI-I : Up to 1920 x 1080 @60Hz
- 1 HDMI : Up to 1920×1080 @ 60Hz
|
| Storage | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 1 SATA III (Mini PCIe Type, 6Gbps) |
| M.2 | 1 M.2 Key M Socket 2280, PCIe x4 (Optional) |
| Storage Device |
- Front-access 2.5" SSD/HDD Tray
- 1 Front-access CFAST Card
|
| Audio | |
| Audio Codec | Realtek® ALC888S-VD, 7.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN |
| LAN 2 | Intel® I226 2.5GigE LAN supports TSN |
| 2.5G PoE | |
| LAN 3 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 4 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 5 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| LAN 6 | 2.5GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I226 |
| *Note : When turbo mode is enabled the PoE power budget supports up to 25.5W/each, for a total of 30W. | |
| 2.5G Ethernet | |
| LAN 7 | Intel® I225 2.5GigE LAN |
| LAN 8 | Intel® I225 2.5GigE LAN |
| LAN 9 | Intel® I225 2.5GigE LAN |
| 10G Ethernet | |
| LAN 7 | Intel® X710-AT2 10GigE LAN |
| LAN 8 | Intel® X710-AT2 10GigE LAN |
| Power | |
| Power Input | DC 11V to 50V |
| Power Interface |
- 3-pin Terminal Block : V+, V-, Frame Ground
- 4-pin Mini-DIN
|
| Ignition Control | 16-mode Software Ignition Control |
| Remote Switch | 3-pin Terminal Block |
| Others | |
| TPM | Infineon SLB9670 supports TPM 2.0, SPI Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Mgmt. | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Mechanical | |
| Dimension | 10.24" x 6.89" x 3.11" |
| Weight | 8.5 lbs |
| Mounting |

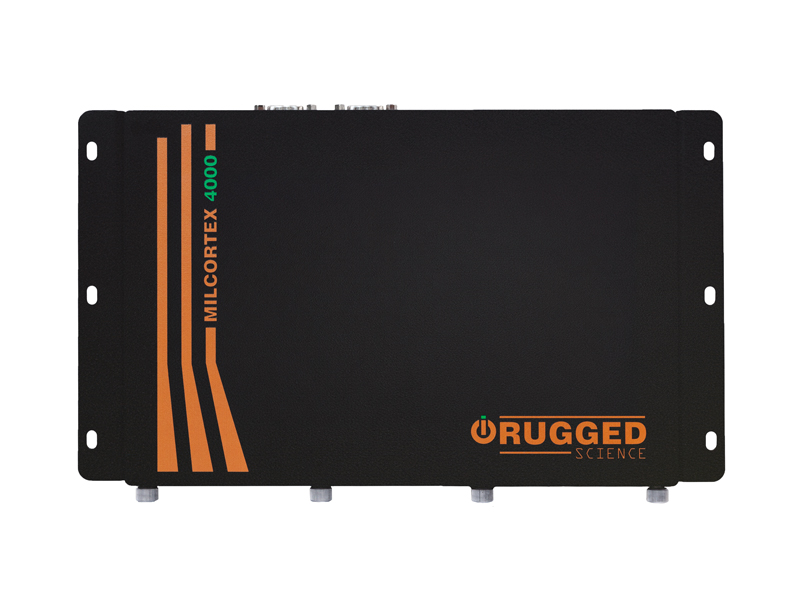

- Panel Mount via mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
|
| Environment | |
| Operating Temperature |
-40°C to 70°C (-40°F to 158°F), Fanless
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% @70°C |
| Shock |
Designed to meet MIL-DTL-901E when integrated into various enclosures
|
| Vibration |
Designed to meet MIL-STD-167-1 when integrated into various enclosures
|
| EMI | Designed to meet MIL-STD-461 when integrated into various enclosures |
