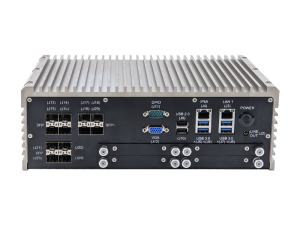

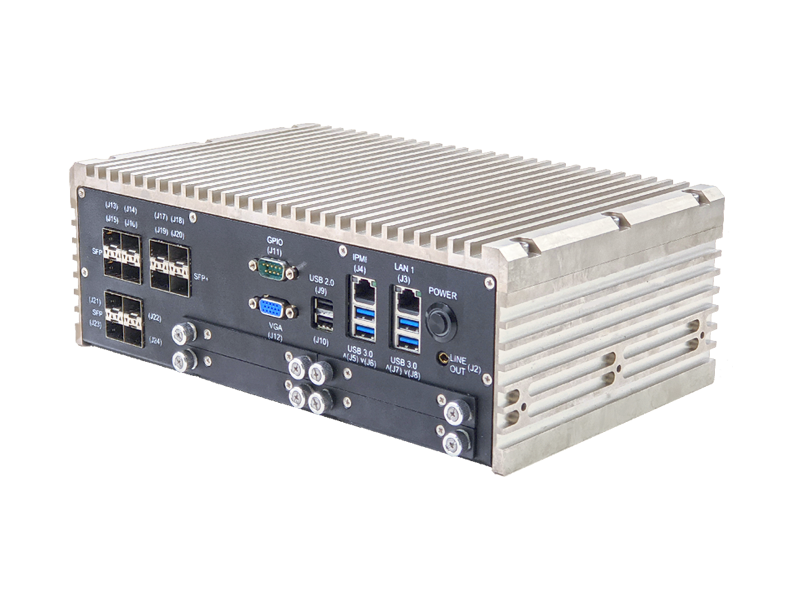

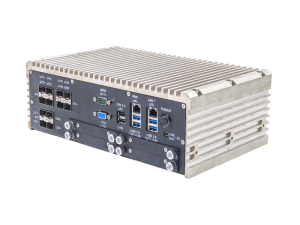

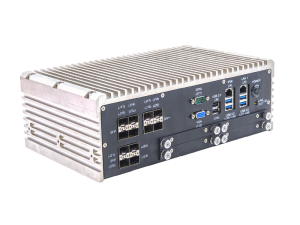

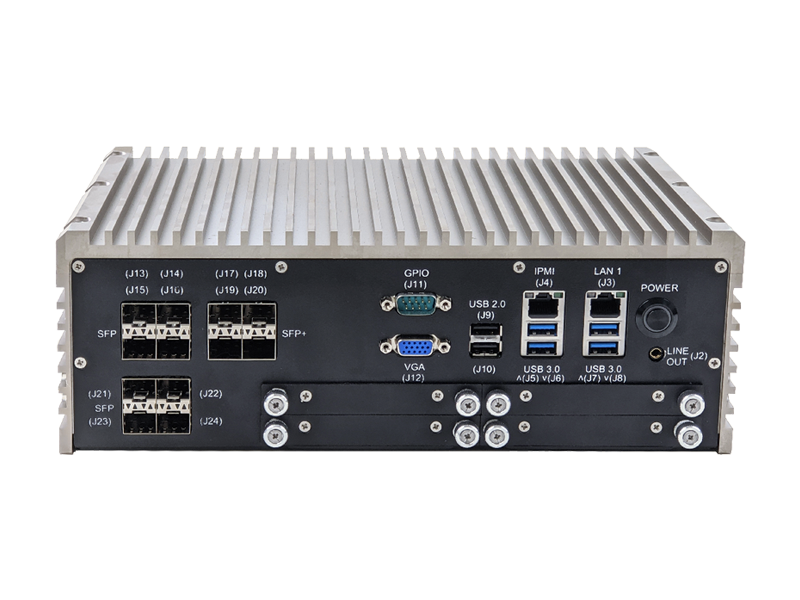

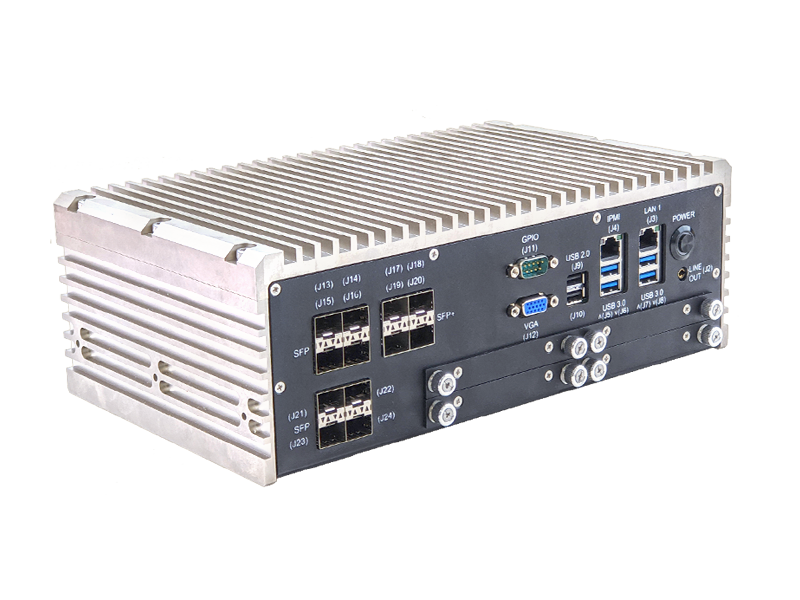

MilEdge 2100 Embedded Server
Featured Specifications
The MilEdge 2100 is a small footprint, wide temperature (-10º to 55ºC ) server-grade embedded computer with no fans and no rotating media. The MilEdge is designed for rugged Hyper-Converged Infrastructure (HCI) edge applications such as Virtualization Server, Terminal Servers, On-Prem Private Hybrid Cloud, and Cyber Security IDS/IPS.
The MilEdge 2100 is equipped with a data center grade 16 Core Intel XEON D-1577 processor that supports 128GB DDR4 RAM. This brings the architectural innovations of the Intel® Xeon® Scalable platform to a system-on-a-chip (SoC) CPU for lower power, higher density solutions, integrating essential network, security, and acceleration capabilities for over one teraflop of compact computing.
To support the server clustering requirements of a tactical hybrid cloud on the edge, the MilEdge 2100 supports up to 4x 10GbE SFP+ ports (supporting both Copper/Fiber SFP+ transceivers) and 2x GbE Copper ports (1x IPMI, 1x Wake On LAN PXE).
Description
The MilEdge is designed for rugged Hyper Converged Infrastructure (HCI) applications such as Virtualization Server, Terminal Servers, On- Prem Private Hybrid Cloud, and Cyber Security IDS/IPS.
The MilEdge 2100 supports up to 4 ports of 10G Ethernet via copper or fiber SFP+ transceivers. (The 10G ports can also be configured to support 10/100/1000 Mbs speeds.) An additional 4x GbE SFP ports and 2x GbE Copper ports provides a total of 10x high speed communication options. Intel’s groundbreaking data center processor brings the architectural innovations of the Intel® Xeon® Scalable platform to a system-on-a-chip (SoC) CPU for lower-power, high-density solutions, integrating essential network, security and acceleration capabilities for over one teraflop of compact computing. The MilEdge 2100 comes equipped with Trusted Platform Module 2.0 for impenetrable anti-tampering protection. Combined with multi-level BIOS password protection and support for the latest Windows 10 and Linux security features, the MilEdge 2100 delivers industry-leading cyber protections.
Technical Specifications
| System | |
| Processor | 16 Cores Intel® Xeon® 1577 |
| Chipset | Intel® C246 chipset |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 4x DDR4 2666MHz SO-DIMM, up to 128GB |
| I/O Interface | |
| Serial | 4 COM RS-232/422/485 (ESD 8KV) |
| USB |
- 6 USB 3.1 (External)
- 1 USB 2.0 (Internal) |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO (Optional) |
| LED | Power, HDD, PoE, Wireless |
| SIM Card | 2 External SIM Card Socket |
| Expansion | |
| Mini PCIe | 2 Full-size Mini PCIe Socket for PCIe/USB/External SIM Card/mSATA |
| M.2 | 1 M.2 Key E Socket |
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics | |
| Graphics Processor | Intel® UHD Graphics P630/630 |
| Interface |
- DVI-I : Up to 1920 x 1200 @ 60Hz
- DVI-D : Up to 1920 x 1080 @ 60Hz
- DisplayPort : Up to 4096 x 2304 @ 60Hz
|
| Storage | |
| SATA | 2 SATA III (6Gbps) support S/W RAID 0, 1 |
| mSATA | 2 SATA III (Mini PCIe Type, 6Gbps) |
| Storage Device |
- 1 CFast Socket, Push-in/Push-out Ejector
- 2 Front-access 2.5" SSD/HDD Tray
- 1 M.2 Key M Socket
|
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 12.0 |
| LAN 2 | Intel® I210 GigE LAN |
| LAN 7 | Intel® 82574L GigE LAN |
| LAN 8 | Intel® 82574L GigE LAN |
| LAN 9 | Intel® 82574L GigE LAN |
| PoE | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| SFP (ECX-1000-6FR/6F) | |
| LAN 5 | 1000BASE SFP by Intel® I350 |
| LAN 6 | 1000BASE SFP by Intel® I350 |
| 10G Ethernet (ECX-1055R/1055/1071R/1071) | |
| LAN 7 |
- Intel® X550-AT2 10GigE LAN
- Intel® X710-BM2 10GigE LAN supports IEEE 802.3 10GBASE-T SFP+
|
| LAN 8 |
- Intel® X550-AT2 10GigE LAN
- Intel® X710-BM2 10GigE LAN supports IEEE 802.3 10GBASE-T SFP+
|
| Power | |
| Power Input | 6V to 36V, DC-in |
| Power Interface | 3-pin Terminal Block : V+, V-, Frame Ground |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats. |
| Software Support | |
| OS | Windows 10, Linux |
| Mechanical | |
| Dimension (W x L x H) | 175mm x 260mm x 79mm (6.9" x 10.2" x 3.1") |
| Weight | 3.8 kg (8.38 lb) |
| Mounting |
- Wallmount by mounting bracket
- DIN Rail Mount (Optional)
- 2U Rackmount (Optional)
|
| Environment | |
| Operating Temperature |
35W TDP CPU :
-40°C to 75°C (-40°F to 167°F)
65W TDP CPU :
-40°C to 55°C (-40°F to 131°F)
80W TDP CPU :
-40°C to 45°C (-40°F to 113°F)
10G Series :
-40°C to 55°C (-40°F to 131°F)
|
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 70°C |
| Shock |
- IEC 60068-2-27
- SSD : 50G @ wallmount, Half-sine, 11ms
|
| Vibration |
- IEC 60068-2-64
- SSD : 5Grms, 5Hz to 500Hz, 3 Axis
|
| EMC | CE, FCC, EN50155, EN50121-3-2 |
