24in Operator Interface Panel
Featured Specifications
- Rugged solid state fanless design
- Quad Core Intel® Xeon® or Core™ i7/i5/i3 CPUs (Skylake/Kaby Lake)
- Ideal for automated status board & shipboard thin-client machinery control applications
- 24” 5-Wire 1920x1080 Touchscreen Display
- Up to 32 Gb RAM
- SSD Expandability
- Optional Fiber LAN
- Military Qualified:
MIL-STD-901D Shock
MIL-STD-461F Vibration
MIL-STD-167-1A EMI
Description

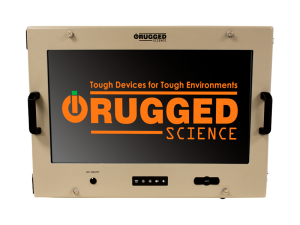

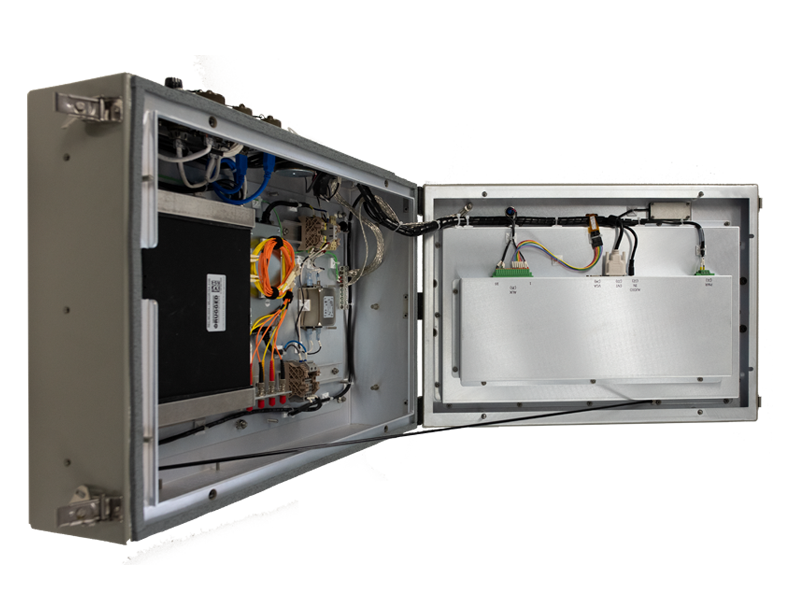

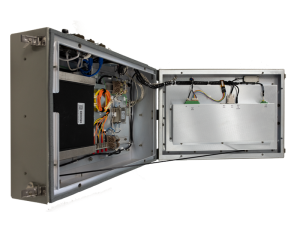

The 24” MILCORTEX OIP, Operator Interface Panel, is designed for tough environments, and feature an innovative and cost-effective “box-in-box” design. The OIP is powered by a Rugged Science MILCORTEX Series Embedded Computer, which is internally mounted within the OIP enclosure. This “box-in-box” design keeps price and obsolescence issues in check.
The MILCORTEX Series embedded computer is powered by Intel® Xeon Core i7/ i5/ i3/ Skylake/Kaby Lake processors and a maximum 32Gb RAM. They come with 2 Copper LANs standard and can be configured for 2 Fiber Ethernet LANs (optional).
The aluminum chassis of the 24” MILCORTEX OIP doubles as a heat sink to passively disperse heat to the ambient environment. The 24” MILCORTEX Operator Interface Panel features a 24” LED backlit display with 1920 x 1080 resolution, a 16:9 aspect ratio, and 300 nits standard brightness for a clear and sharp display. An AC power connector kit is available.
Technical Specifications
| System | |
| Internal Embedded Computer | Rugged Science MILCORTEX 3000 Series |
| Processor | Quad-Core Intel® Xeon®/Core™ i7/i5/i3 CPUs (Skylake/Kaby Lake) |
| Chipset | Intel® C236 |
| Memory | 2x DDR4 2133MHz SO-DIMM, up to 32GB |
| I/O Interface | |

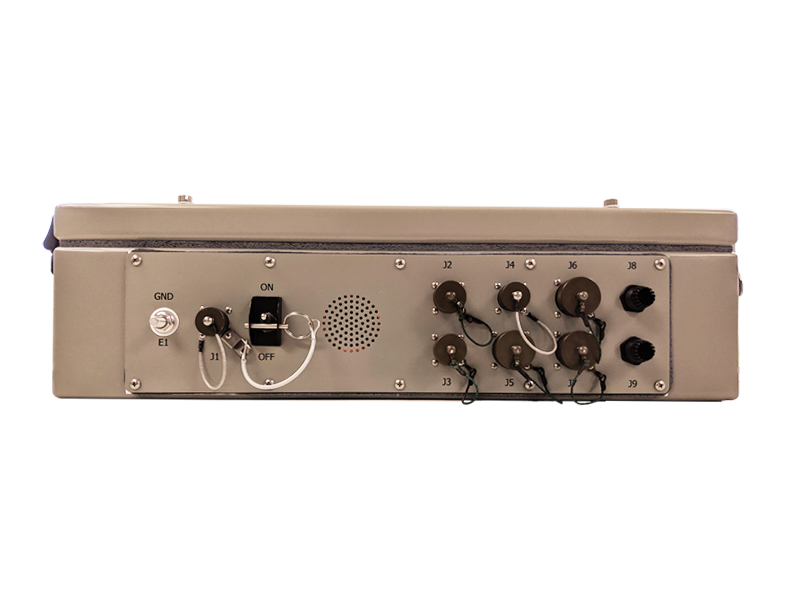

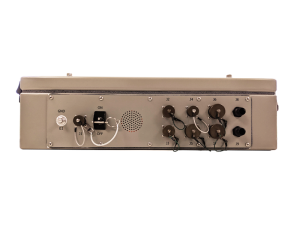

| External I/O | Configurable to match embedded computer I/O |
| Inline Mouse |
Sealed USB inline pointing device on front bezel
|
| OSD Brightness Control | 34-button control and OSD menu |
| Ethernet | |
| Fiber LAN |
100 BAse FX Fiber LAN via ST connector
(Fiber Gigabit Ethernet option also available)
|
| Graphics & Video | |
| Display Size |
24" diagonal viewing area, 5W resistive touch w/ 2.8mm glass
|
| Resolution |
1920 x 1080
|
| Aspect Ratio | 16:9 |
| Backlight | LED backlit |
| Brightness |
300 nits
|
| Colors | 16.7M Colors (24bit) |
| Contrast Ratio | 5000:1 |
| Storage | |
| SATA | (2) SATA III (6Gbps) |
| mSATA | SATA III (Mini PCIe Type, 6Gbps) |
| Expansion | |
| SUMIT | (2) SATA III (6Gbps) |
| Mini PCIe | SATA III (Mini PCIe Type, 6Gbps) |
| Power | |
| Input Voltage | SUMIT A&B Connector |
| Protection | (2) mini PCIe |
| Audio | |
| Codec | Realtek ALC892, 5.1 channel HD audio with 93 dB speaker Line-out, Mic-in, Front audio header |
| Mechanical | |
| Size (W x D x H) | 648mm x 180mm x 457mm (25.5" x 7.09" x 18") |
| Weight | 43.3 lbs. (without bracket) 49.1 lbs. (with bracket) |
| Design |
Aluminum chassis and enclosure
|
| Environmental | |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Humidity | 0% to 95% Humidity |
| Additional | |
| Trusted Mobile Platform | Infineon SLB9635, LPC Interface (Optional) |
| Watchdog Timer | Reset: 1 to 255 sec/min Per Step |
| Designed to Meet | |
| Shock | MIL-STD-901D, Grade A |
| EMI | MIL-STD-461G |
| Vibration | MIL-STD-167-1A |
| Power | MIL-STD-1399 |
