24in All-in-One PanelPC

Featured Specifications

  • Intel® Core™ i7/ i5/ i3/ Celeron® U-series Processor
  • 16GB, 1 DDR4 2133 MHz RAM
  • Intel® HD Graphics 520
  • Rugged, fan-less, -10°C to 60°C operating temperature
  • 1920x1080 resolution
  • Meets military shock, vibration, and EMI standards
Request a Quote
24in_PanelPC_Milspec

Description

Our MilSynapse 24in Rugged Military Panel PC meets or exceeds all military standards for shock, vibration, and electromagnetic interference. They are tough, powerful, and ready to deploy now.

They feature a fanless design with a tough, corrosion resistant housing, and wide 24" diagonal viewing area. The MilSynapse 24in delivers with powerful Intel® Core™ i7/ i5/ i3/ Celeron® CPUs, and up to 16 GB RAM.

All MilSynapse Military Panel PCs offer convenient on-screen controls, auto-dimming, and integrated Intel HD graphics as standard.

Technical Specifications

System & Motherboard
CPU Intel® Core™ i7/ i5/ i3/ Celeron® U-series Processor (Skylake-U, up to 4M Cache, 3.4GHz)
RAM (1) DDR4 2133MHz SO-DIMM, up to 16GB
GPU Intel® HD Graphics 520
Operating System Windows 10, Window 8.1, Window 7, Linux

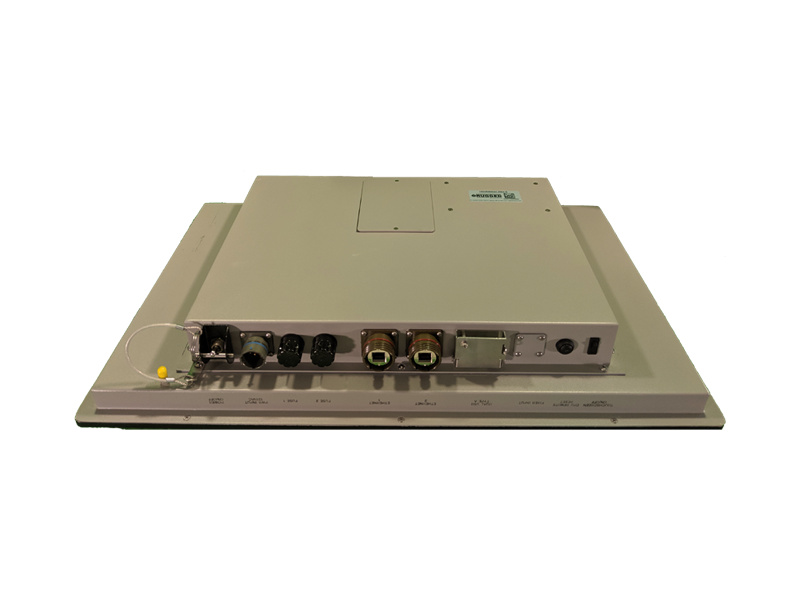

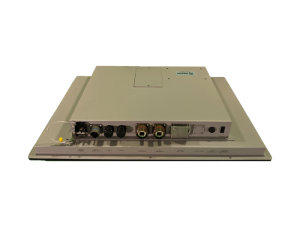

Input/Output
USB (2) USB3.0 Type A - MIL Circular Connector
Serial (2) RS232/422/485 COM - IP65 DB9 Connector
Ethernet
(1) Intel I219LM GbE LAN - MIL Circular Connector
(1) Intel I210 GbE LAN - MIL Circular Connector
Fiber OPTIONAL - (2) Channel 10/100/1000/100000
Power 24VDC Input - MIL Circular Connector
Storage
SATA (2) SATA III (6Gbps)
mSATA (1) mSATA (Mini PCIe Type, 6Gbps)
Display
Type LCD Display with LED Backlight
Screen Size 24" diagonal
Resolution 1920 x 1080
Glass 3mm AR Glass
Brightness 1000 cd/m2
Viewing Angle ± 80 degrees horizontal and vertical
Touchscreen OPTIONAL - Resistive Touch
Environmental
Operating Temp. -10°C to 60°C - MIL-STD-810G
Storage Temp. -40°C to 70°C - MIL-STD-810G
Shock MIL-STD-901D, Grade A, Class 1
Vibration MIL-STD-167-1
EMI MIL-STD-461 - CE101, CE102, CS101, CS114, CS116, RE101, RE102, RS101, RS103
