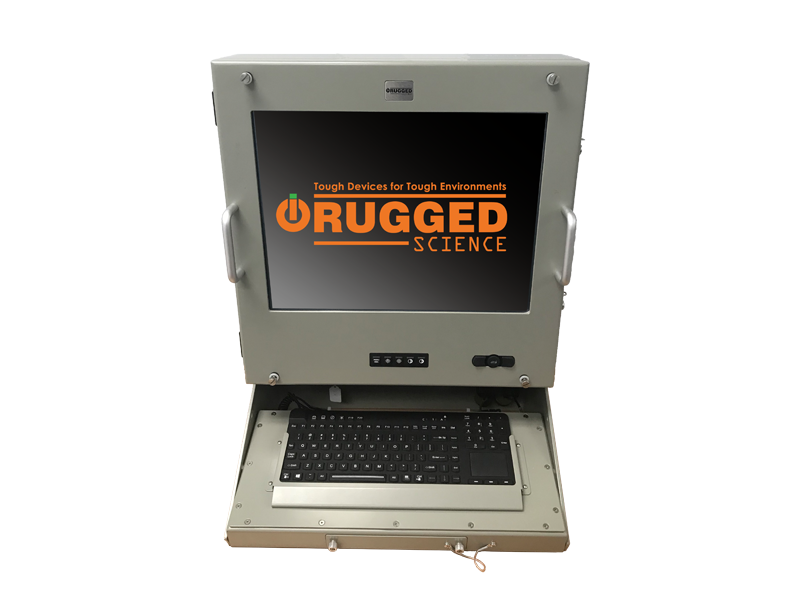

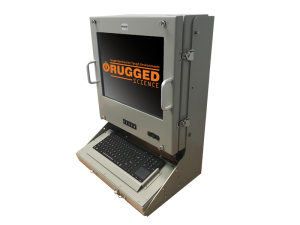

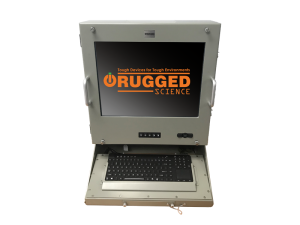

20.1in Operator Interface Panel
Featured Specifications
- Rugged solid state fanless design
- Quad Core Intel® Xeon® or Core™ i7/i5/i3 CPUs (Skylake/Kaby Lake)
- Ideal for automated status board & shipboard thin-client machinery control applications
- 20.1” 5-Wire 1920x1080 Touchscreen Display
- Up to 32 GB RAM
- SSD Expandability
- Optional Fiber LAN
- Military Qualified:
MIL-STD-901D Shock
MIL-STD-461F Vibration
MIL-STD-167-1A EMI
Description

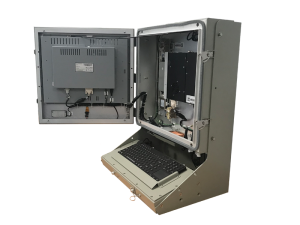

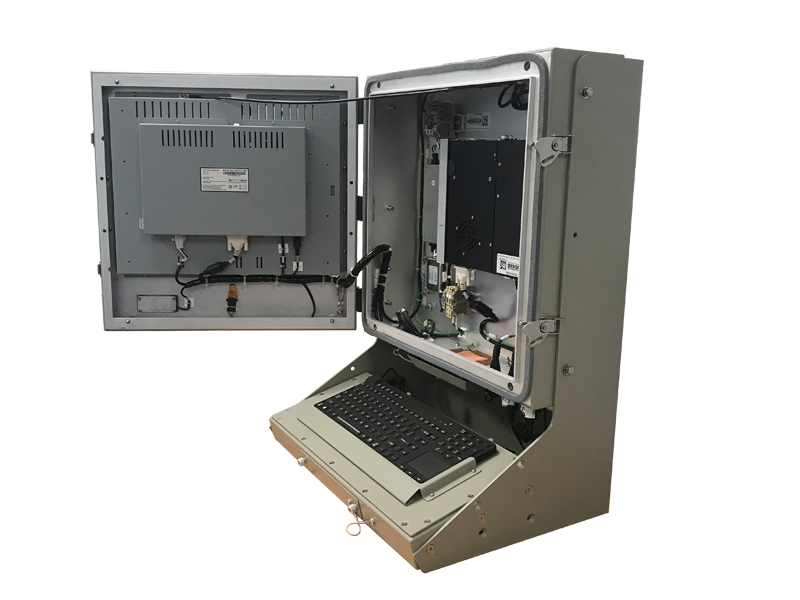

The 20.1” Operator Interface Panel, is designed for tough environments, and feature an innovative and cost-effective “box-in-box” design. The OIP can be powered by any of our Rugged Embedded Computers, which internally mount within the OIP enclosure. This “box-in-a-box” design keeps price and obsolescence issues in check.
The aluminum chassis of the 20.1” OIP doubles as a heat sink to passively disperse heat to the ambient environment. The 20.1” Operator Interface Panel features a 20.1” LED backlit display with 1600 x 1200 resolution, a 4:3 aspect ratio, and 300 nits standard brightness for a clear and sharp display.
Technical Specifications
SPECIFICATIONS BELOW BASED ON THE MILCORTEX 3000 EMBEDDED COMPUTER.
Contact a sales representive for more configuration options.
System | |
Internal Embedded Computer | Rugged Science MILCORTEX 3000 Seri |
Processor | Quad Core Intel® Xeon® or CoreTM i7/i5/i3 CPUs (Skylake/Kaby Lake) |
Chipset | Intel® C236 |
Memory | 2x DDR4 2133MHz SO-DIMM, up to 32GB |
I/O Interface | |
External I/O | Configurable to match embedded computer I/O |
Inline Mouse |
Sealed USB inline pointing device on front bezel
|
OSD Brightness Control | 4-button control and OSD menu |
Ethernet | |
Fiber LAN |
100 Base FX Fiber LAN via ST connector
(Fiber Gigabit Ethernet option also available)
|
Graphics & Video | |
Display Size |
20.1" diagonal viewing area, 5W resistive touch w/ 2.8mm glass
|
Resolution |
1600 x 1200
|
Aspect Ratio | 4:3 |
Backlight | LED backlit |
Brightness | 300 nits |
Colors | 16.7M Colors (24bit) |
Contrast Ratio |
5000:1
|
Storage | |
SATA | (2) SATA III (6Gbps) |
mSata | SATA III (Mini PCIe Type, 6Gbps) |
Expansion | |
SUMIT | SUMIT A&B Connector) |
Mini PCIe | (2) Mini PCIe) |
Audio | |
Codec | Realtek ALC892, 5.1 Channel HD Audio with 93dB Speaker Line-out, Mic-in, Front Audio Header |
Mechanical | |
Dimension (W x D x H) | 648mm x 180mm x 457mm (25.5" x 7.09" x 18") |
Weight | 43.3 lbs. (without bracket) 49.1 lbs. (with bracket) |
Design |
Aluminum chasis and enclosure
|
Environmental | |
Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Humidity | 0 to 95% Humidity, non-condensing |
Relative Humidity | 95% at 60°C |
Additional | |
Trusted Mobile Platform | Infineon SLB9635, LPC Interface (Optional) |
Watchdog Timer | Reset: 1 to 255 sec/min Per Step |
Designed to Meet | |
Shock | MIL-STD-901D, Grade A |
EMI | MIL-STD-461G |
Vibration | MIL-STD-167-1A |
Power | MIL-STD-1399 |
