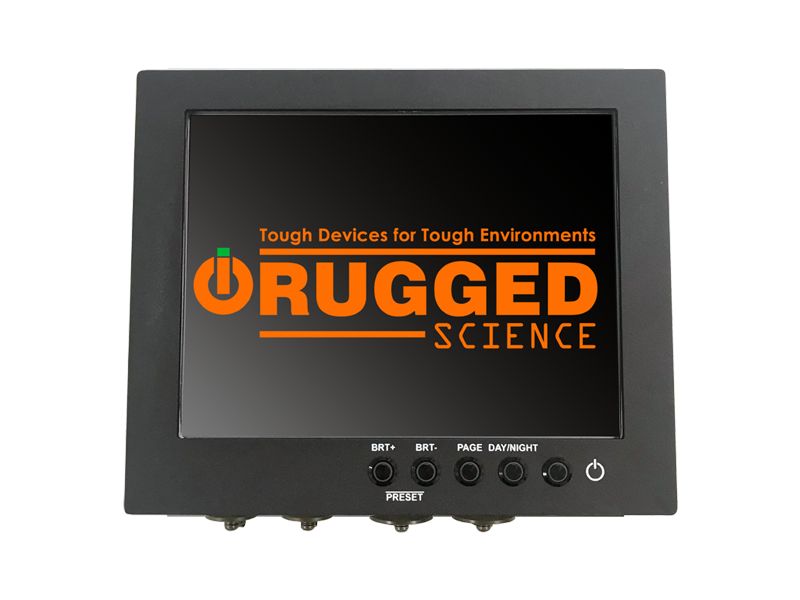

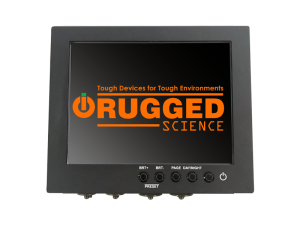

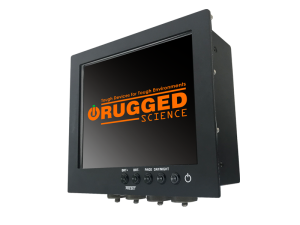

10.4in All-in-One PanelPC
Featured Specifications
- Intel® Core™ i5 Skylake Series Dual-Core CPU
- 16GB wide-temp 1 DDR4 2133 MHz RAM
- Intel® Integrated HD Graphics 250
- 10.4” diagonal viewing area
- 5-wire resistive touchscreen with 1920x1080 resolution
- Bezel mounted OSD and inline mouse
- 2 USB 3.0 Type-A Ports
- 1 RS-232/422/485 Serial COM Port
- 2 RJFTV21G Ethernet Connectors
- Certifications:
MIL-STD-901D (shock)
MIL-STD-167-1A (vibration)
MIL-STD-461E (EMI)
Description
Our MILSYNAPSE 10.4” Rugged Military All-In-One (AIO) PC is designed to meet or exceed all military standards for shock, vibration, and electromagnetic interference. They are tough, powerful, and ready to deploy now.
The MILSYNAPSE 10.4” AIO delivers with powerful Intel® Core™ i7/i5/i3 Skylake CPUs, 5-wire resistive touchscreen, and up to 16GB RAM. Featuring a fanless design, with a tough, corrosion-resistant housing, and wide viewing angles to ± 89 degrees, this AIO is everything needed to outperform the competition in the toughest environments.
All MILSYNAPSE AIO’s offer convenient on-screen controls, auto-dimming, and integrated Intel® HD graphics as standard.
Technical Specifications
| System & Motherboard | |
| CPU | Intel® Core™ i7/i5/i3 Skylake Series Dual-Core Processor |
| RAM | Up to 16GB Wide-Temp 1.35V, 1 DDR4 2133MHz SO-DIMM |
| BIOS | Administrator lockout of USB ports - Administrator password access |
| GPU | Intel® HD Graphics 250 |
| Display | |
| Type | LCD display with LED backlight |
| Dimensions | |
| Screen Size |
10.4in diagonal
|
| Resolution | 1920x1080 |
| Glass | 2.8mm tempered |
| Brightness | 300 cd/m |
| Min Viewing Angle |
85 degree horizontal and vertical
|
| Touchscreen | 5-wire resistive touch |
| OSD Menu |
Front bezel mounted OSD menu buttons that allow directly accessible brightness up/down (max bright to 1 nit)
volume/up down without going through OSD navigation menu |

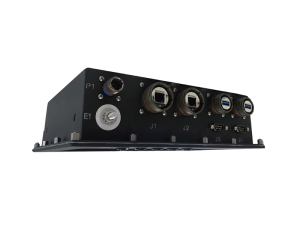

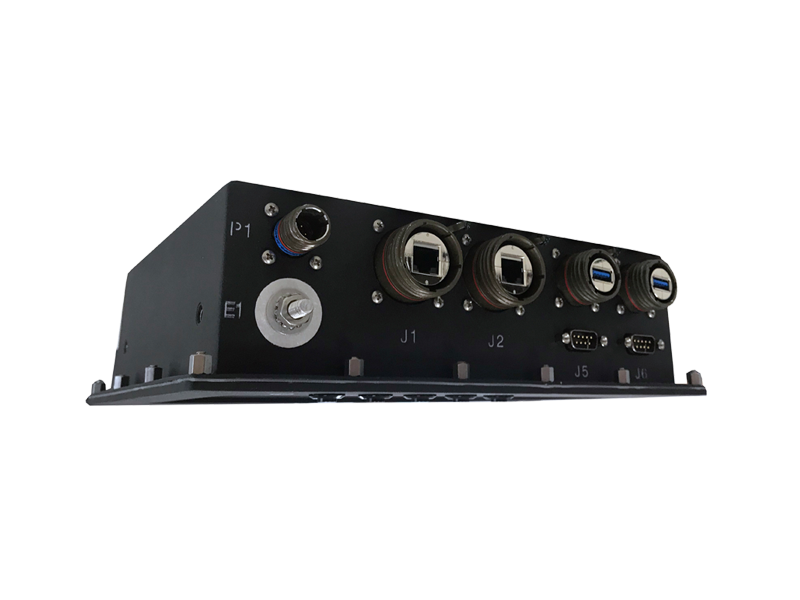

| Input/Output | |
| USB | 2x USB 3.0 Type A |
| Serial COM | 1x RS-232/422/485 Isolated Serial COM DB9 Male |
| Ethernet |
2x RJFTV21G Amphenol Connectors
|
| Fiber | Optional 1 (2x channel 100BaseFX) or Optional 2 (2x channel GbE) |
| Function Keys | Optional 2x User Programmable |
| Mouse | 1x Inline Mouse |
| Speaker | 2x 102 dB |
| Storage Media | |
| SSD | Wide-temp, user-accessible |
| CFast | Wide-temp, user-accessible |
| Power | |
| Input Power | 90 – 264 VAC, 60 Hz, 1 Ø, 200 watts max |
| Connector | MS27656E15B5P Power Input Connector (115 VAC @60HZ DELTA) |
| Switch | ON/OFF Toggle Switch STDP, 15A, water tight |
| Current | 1.8A max @ 115VAC |
| Fusing | 2x external 5A panel mount |
| Certifications | |
| Shock | MIL-STD-901D (Navy) |
| Vibration | MIL-STD-167-1A |
| Electromagnetic Interference (EMI) | MIL-STD-461F |
