42in MilSpec Flat Panel Display
Featured Specifications
- Fanless 0°C to 50°C Operating Temperature
- 42-in 1920x1080 LCD Display
- 16:9 Aspect Ratio for Widescreen Format
- Infrared Multi-Touch Touchscreen (works with Fire Fighting Gloves)
- HDMI Input for High Definition Audio and Video
- Shock: MIL-S-901D, Grade A
- Vibe: MIL-STD-167-1
- EMI: MIL-STD-461G
Description

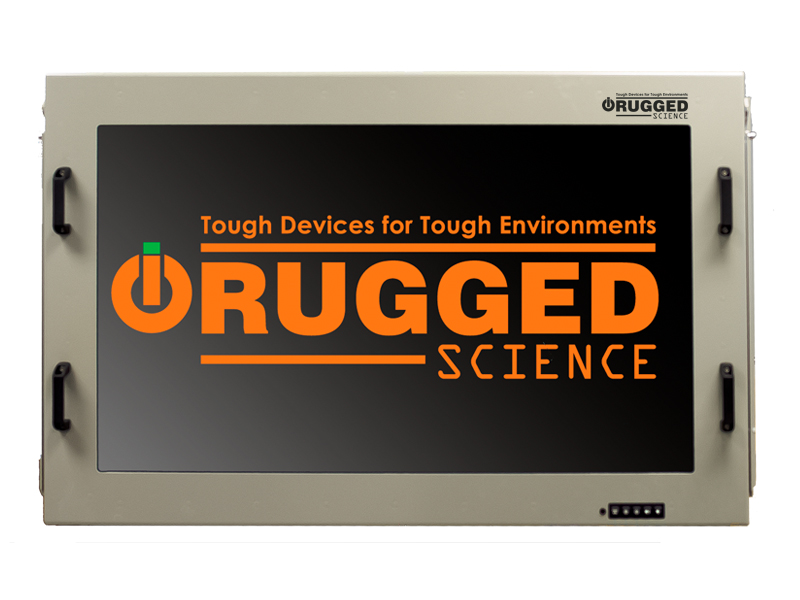

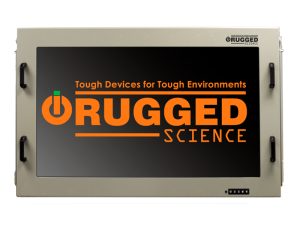

The 42-inch MILGUARD Flat Panel Display (FPD) from Rugged Science features a fanless, 42-inch 1920x1080 high definition LCD display. This ruggedized, large format display features an LED-backlight that disperses very little heat and allows for fanless operation in harsh operating temperatures from 0°F to 122°F. The LCD panel is protected with a layer of tempered glass that is optically
bonded to the panel and has a layer of anti-reflective coating for exceptional clarity and vivid contrasts. The 42in MILGUARD incorporate the latest in technological advances offering wide viewing angles for control systems that feature high information density.
The front of the display features an Infrared Multi-Touch Touchscreen that is equipped with technology that is resistant to dust, debris, and other particles that collect on the bezel. The 42-inch MILGUARD FPD comes standard with 500 nits of brightness.
Technical Specifications
| Display Characteristics | |
| Panel Size and Type | 42-inch Diagonal Active Matrix TFT LCD Display |
| Panel Display Resolution | 1920 x 1080 High Definition Resolution |
| Pixel Pitch (mm) | 0.4845mm (H) x 0.4845mm (W) |
| Panel Contrast Ratio | 400:1 (typ.) |
| Panel Brightness | 500cd/m2 |
| Brightness Control | 0% to 100% logarithmic |
| Panel Viewing Angle | 89o Horizontal & Vertical |
| Active Display Area | 930.24mm (H) x 523.26mm (V) |
| Display Color | 16.7M 8-bit |
| Anti-reflective | Anti-reflective Surface Treatment |
| Input/Output | |

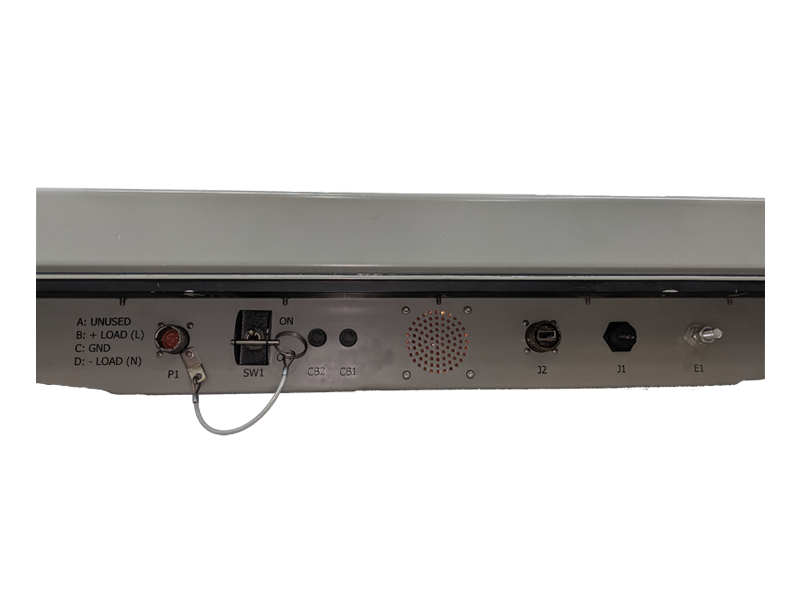

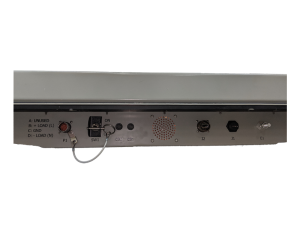

| Video-Input | 1 x HDMI Plastic Molded Circular Connector rated to IP67 Single HDMI Cable carries both HD audio and Video |
| Touchscreen | USB Infrared Multi-Touch Touchscreen |
| Speaker | 110dB Speaker |
| Control Buttons | |
| Front Bezel OSD Menu Buttons |
Brightness Up | Brightness Down
Volume Up | Volume Down
OSD MENU |
| LED Indicator | Power On/Off |
| Mechanical Electrical Environmental | |
| Glass Thickness |
Optically bonded 2.8mm Tempered Glass
|
| Ingress Rating | IP65 |
| Dimensions (W x L X H) | 44.5in (W) xX 28.5in (H) X 4.66in (D) |
| Net Weight (lbs) | 75 lbs without mounting bracket | 105 lbs with mounting bracket |
| Power Input |
External input: 90 - 305 VAC (Operating)
115/230VAC (Nominal)
47 - 63 Hz
|
| Power Consumption | 80 Watts max (0.70 amps, 115VAC) |
| Panel Operating Temp | 0oC to 50oC | Fanless passively cooled |
| Panel Storage Temp |
-20oC to 85oC
|
| Operation Humidity | 0% to 95% (non-condensing) |
| Storage Humidity | 0% to 95% (non-condensing) |
| Shock | MIL-S-901D Grade A, Class 1, Type A |
| Vibration | MIL-STD-167-1, Type 1 |
| EMI | MIL-STD-481G |
| Environmental | MIL-STD-810G |
