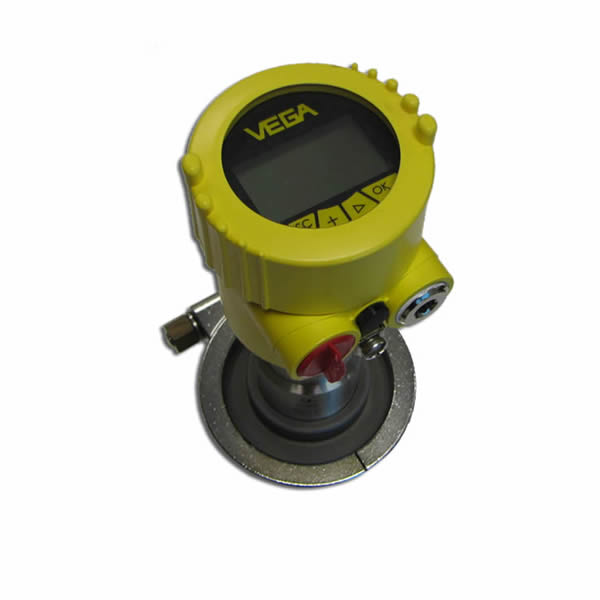

VEGAPULS 66 Waste Tank CHT Radar TLI
Featured Specifications
- Non-contact measurement - no moving parts
- Lifecycle cost-effective alternative to differential pressure, floats and displacers
- 2-wire technology reduces wiring costs and allows easy implementation into existing systems
- No need to perform manual soundings by ship’s crew

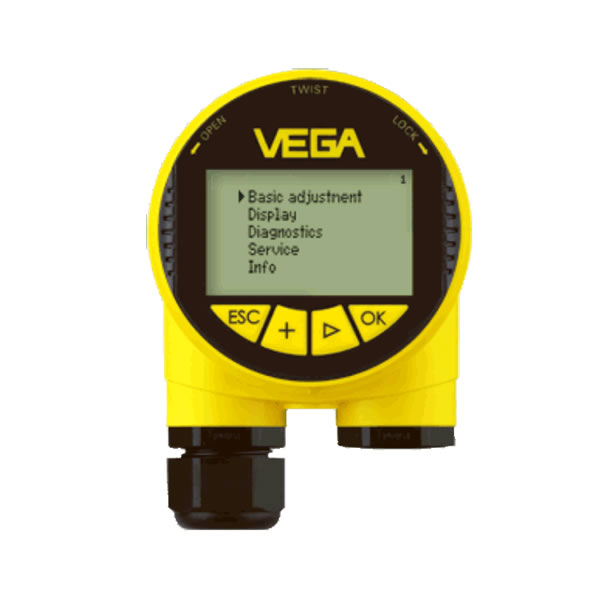

- Easy on-site operation and indication via PLICSCOM menu-driven display
- Easy commissioning, documentation and diagnostics via PACTware calibration software
- Calibration can be performed via laptop personal computer without having to enter the tank or remove device
- Fluent across all communication protocols: 4-20ma/HART, PROFIBUS PA, FOUNDATION Fieldbus
- Measurement independent of fluid temperature or pressure
- Radar tank level indicator performs electronic measurements outside of the tank
Description

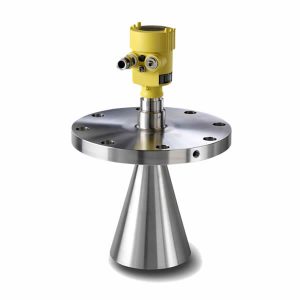

This configuration of the Radar Tank Level Indicator is used in black/gray water waste tanks and is advantageous because no moving parts are within the tank, consequently eliminating the potential for failure from fouling. The radar antenna is made of corrosion resistant Hastelloy and is unaffected by temperature or gases. Calibration can be performed locally at the radar head or via a laptop PC and user-friendly PACTware software. This avoids the disagreeable and expensive task of opening and entering the ship's waste tanks.
The application areas for the radar level instrument VEGAPULS 66, which can handle the toughest process conditions, are found mainly in the chemical industry, in environmental and recycling technology and in the petrochemical sector. The non-contact radar level instrument is used in steam drums (process heat generation) as well as in mud pits, process vessels and storage tanks.
Technical Specifications
| Technical Data | |
| Measuring Range | 0 to 25.6m (0 to 84 ft) |
| Measuring Interval | 0.35 Second |
| Frequency | C-Band |
| Accuracy | Linear Error: ± 8mm (0.3”) |
| Environmental | |
| Vessel Pressure | 150 PSI |
| Operating Temperature |
Housing: -40 °C to 71 °C Antenna: -40 °C to 150 °C |
| Mechanical | |
| Dimensions (W,D,H) | |
| Weight | Radar Sensor: 11.1 kg (24.5 lbs) |
| Mechanical Connection | Radar Sensor Connection: 6” 150# ANSI Flange |
| Electrical | |
| Power Requirements | 24 VDC (21 to 32 VDC) |
| Power Consumption | Max 240 mW |
| Current Consumption | Max 22mA |
| Electrical Connection | Cable Type : 0.12” to 34” diameter, 16 to 18 AWG shielded twisted pair cable recommended Cable Entry: Cable Gland |
| Materials | |
| Wetted Parts | Hastelloy PTFE Teflon |
| Display | LCD in dot matrix |
| Antenna | PTFE Teflon with Viton seal |
| Housing | PBT (Valvox) UV stabilized plastic |
| Approvals | |
| FCC | Part 15, no restrictions - no site license required |
| Military Approval | MIL-L-23886C (SH) , ASTM-F2044-00 |
| Shock | Grade A, MIL-S-901D |
| Vibration | MIL-STD-167-1 |
| EMI | MIL-STD-461/462 E |
