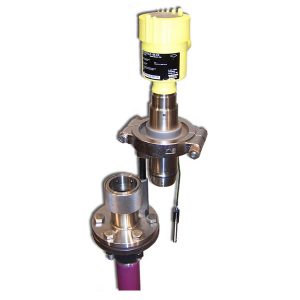

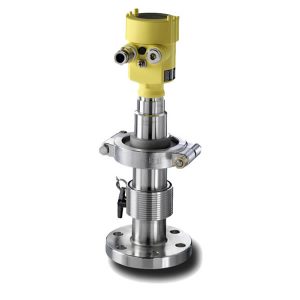

VEGAPULS 66 Swivel and Sound Radar TLI
Featured Specifications
- Non-contact measurement - no moving parts
- Lifecycle cost-effective alternative to differential pressure, floats and displacers
- 2-wire technology reduces wiring costs and allows easy implementation into existing systems
- No need to perform manual soundings by ship’s crew
- Easy on-site operation and indication via PLICSCOM menu-driven display
- Calibration can be performed via laptop personal computer without having to enter the tank or remove device
- Fluent across all communication protocols: 4-20ma/HART, PROFIBUS PA, FOUNDATION Fieldbus
- Measurement independent of fluid temperature or pressure
- Radar tank level indicator performs electronic measurements outside of the tank
Description
Technical Specifications
Technical Data |
||
Measuring Range |
In standard 1 1/2 schedule 40 sounding tube: 0 to 25.6m (0 to 84 ft) |
|
Measuring Interval |
1 Second |
|
Frequency |
C-Band |
|
Accuracy |
Linear Error: ± 10mm (0.4”) |
|
Environmental |
||
Vessel Pressure |
Sensor with Tube Adaptor: 30 psi |
|
Operating Temperature |
Housing: -40 °C to 71 °C |
|
Mechanical |
||
Dimensions (W,D,H) |
8 3/4”, 6 7/8” , 16 1/4” |
|
Weight |
Radar Sensor: 3.0 kg (6.6 lbs) Sounding Tube Adaptor: 3.1 kg (6.8 lbs) Complete Sensor: 6.1 kg (13..4 lbs) |

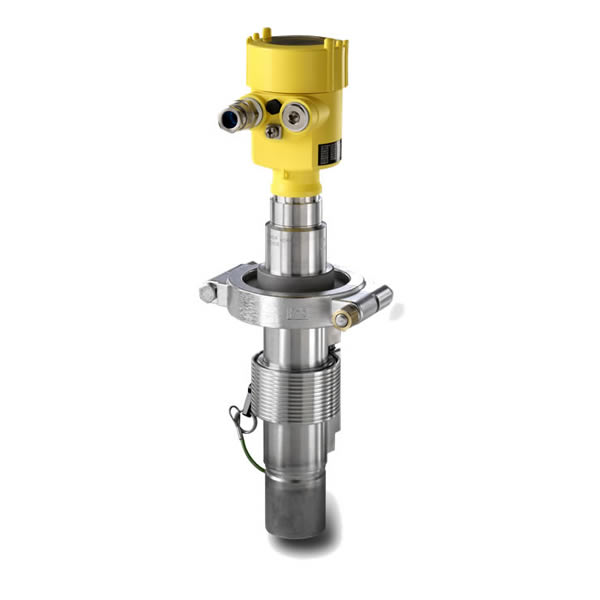

Threaded: Stub End: |
Mechanical Connection |
Sounding Tube Adaptor: 1 1/2” 6 Bolt Navy Flange Radar Sensor Connection: Hardened Clamp fitting |
Threaded: Stub End: |
Electrical |
||
Power Requirements |
24 VDC (21 to 32 VDC) |
|
Power Consumption |
Max 240 mW |
|
Current Consumption |
Max 22mA |
|
Electrical Connection |
Cable Type : 0.12” to 34” diameter, 16 to 18 AWG shielded twisted pair cable recommended Cable Entry: Cable Gland |
|
Materials |
||
Wetted Parts |
Stainless Steel 316L , PTFE Teflon |
|
Display |
LCD in dot matrix |
|
Antenna |
PTFE Teflon with Viton seal |
|
Sounding Tube Adaptor |
316 Stanless Steel |
|
Housing |
PBT (Valvox) UV stabilized plastic |
|
Approvals |
||
FCC |
Part 15, no restrictions - no site license required |
|
Military Approval |
MIL-L-23886C (SH) ASTM-F2044-00 |
|
Shock |
Grade A and MIL-S-901D |
|
Vibration |
MIL-STD-167-1 |
