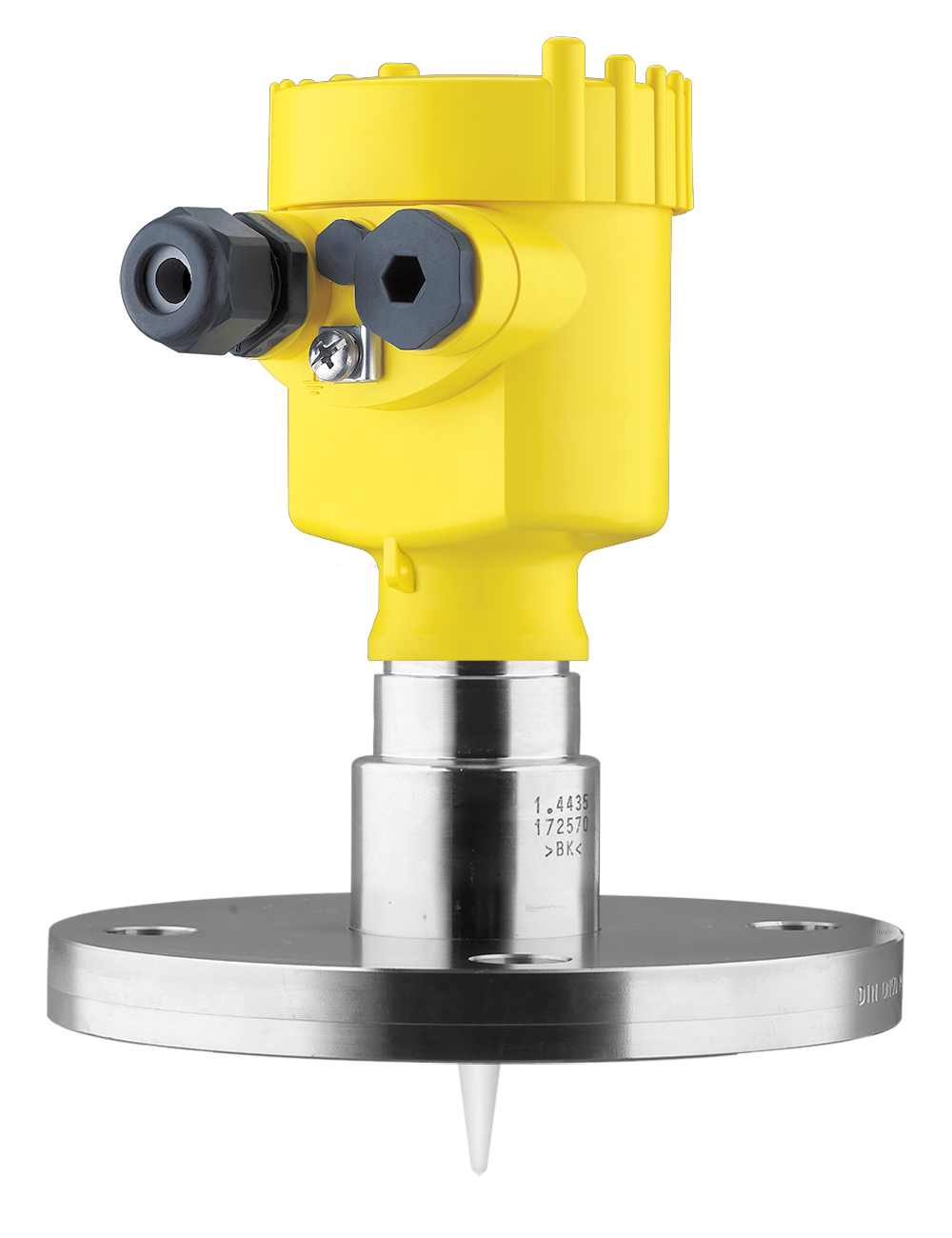

VEGAPULS 66 Stilling Well
Featured Specifications
- Non-contact measurement
- Simple mounting
- Wear and maintenance-free
- Unaffected by pressure, temperature, gas and dust
- High accuracy
Description
The VEGAPULS 66 Stilling Well Radar with PTFE Tefl on Facing is well-suited for a wide variety of continuous level measurements in liquids
where a stilling well is present. Typical applications are the measurement of liquids in storage tanks including vessels, reactors, or sumps. The most common applications for the VEGAPULS 66 include:
- Condenser Hot Well
- Condensate
- Fuel Oil
- Fresh Water
- Ballast Water
Technical Specifications
| Technical Data | |
| Measuring Range | 0 to 25.6m (0 to 84 ft) |
| Measuring Interval | 1 Second |
| Frequency | C-Band |
| Accuracy | Linear Error: ± 10mm (0.4”) |
| Environmental | |
| Vessel Pressure | 150 PSI |
| Operating Temperature |
Housing: -40 °C to 71 °C Antenna: -40 °C to 150 °C |
| Mechanical | |
| Dimensions (W,D,H) | |
| Weight | Radar Sensor: 4.4 kg (9.8 lbs) |
| Mechanical Connection | Radar Sensor Connection: 2” 150# ANSI Flange |
| Electrical | |
| Power Requirements | 24 VDC (21 to 32 VDC) |
| Power Consumption | Max 240 mW |
| Current Consumption | Max 22mA |
| Electrical Connection | Cable Type: 0.12” to 34” diameter, 16 to 18 AWG shielded twisted pair cable recommended Cable Entry: Cable Gland |
| Materials | |
| Wetted Parts | PTFE Teflon |
| Display | LCD in dot matrix |
| Antenna | PTFE Teflon with Viton seal |
| Housing | PBT (Valvox) UV stabilized plastic |
| Approvals | |
| FCC | Part 15, no restrictions - no site license required |
| Military Approval | MIL-L-23886C (SH) , ASTM-F2044-00 |
| Shock | Grade A, MIL-S-901D |
| Vibration | MIL-STD-167-1 |
| EMI | MIL-STD-461/462 E |
