VEGAPULS 64 Waste Tank CHT TLI

Featured Specifications

  • Maintenance-free operation thanks to non-contact measuring principle
  • High plant availability, because wear and maintenance free
  • Exact measuring results independent of process conditions
  •
Request a Quote

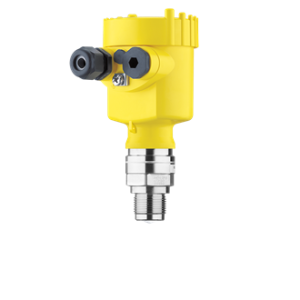

vegapuls64-1

Description

The VEGAPULS 64 is a sensor for continuous level measurement of liquids. With small tanks or in case of narrow space the small process fittings offer special advantages. The PULS64 operates on the 80GHz transmission frequency. This allows a 3 degree radar beam - the narrowest beam available for tank level indication. A 3 degree radar beam can avoid obstacles in the tank, is unaffected by debris on the tank walls, and will only reflect off the surface of the liquid in the tank.

Technical Specifications

Technical Data

Measuring Range

30 m (98.43 ft)

Process Fitting

Thread from G¾, ¾NPT,

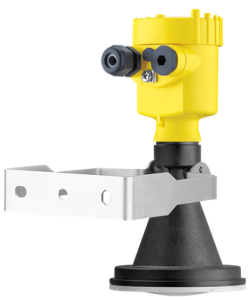

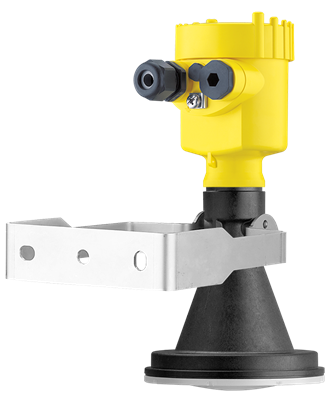

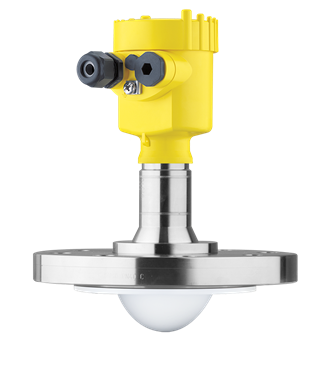

flanges from DN 50, 2”, mounting strap,

adapter flanges from DN 100, 4”

Deviation

≤ 1 mm

Environmental

Process Pressure

-1 to 25 bar (-100 to 2500 kPa/ -14.5 to 362.6 psig)

Process Temperature

-196 to +200 °C (-321 to +392 °F)

Ambient, storage, and

transport temperature

-40 to +80 °C (-40 to +176 °F)

Electrical

Operating Voltage

12 to 35 VDC

Electonics Versions

4 to 20 mA/HART

HART

Power Pack

Materials

Wetted Parts

316L, PP, PTFE, or PEEK

Display

LCD in dot matrix

Process Seal

FKM, FFKM, EPDM, or PTFE

Housing

Plastic, Stainless Steel, or Aluminum

Protection Rating

Up to IP68 (1 bar)
