VEGABAR 83 Hydrostatic Pressure Indicator
[breadcrumb]
Featured Specifications
- Universal use thanks to completely welded measuring cell
- High measurement reliability through vacuum resistant version
- Maximum reliability and safety through proven technology
Description
The VEGABAR 83 is a pressure transmitter for pressure and level measurements of liquids and viscous products in the chemical, food processing and pharmaceutical industry. The VEGABAR 83 offers the possibility to detect even smallest measuring ranges from 0.1 bar. In conjunction with a Slave sensor the VEGABAR 83 is also suitable for the electronic differential pressure measurement.
Technical Specifications
|
Technical Data |
|
|
Pressure Measuring Range |
-1 … +1000 bar / -0.1 … +100 MPa (-14.5 … +15000 psig) |
|
Process Temperature |
-40 °C to 200 °C (-40 to +392 °F) |
|
Process Pressure |
-1 to 1000 bar |
|
Deviation |
< 0.075 %; < 0.1 %; < 0.2 % |
|
Accuracy |
0.075 % |
|
Smallest Measuring Range |
+0.1 bar/+10 kPa (+1.45 psig) |
|
Process Fitting |

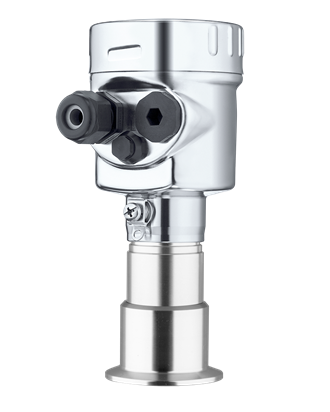

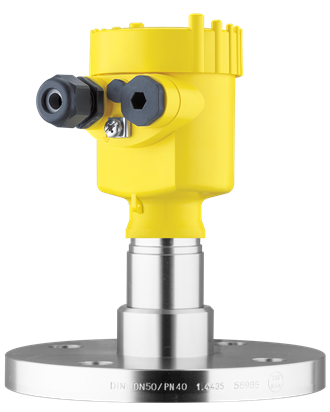

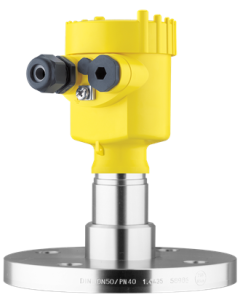

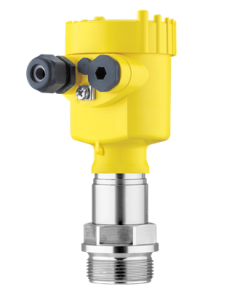

Threaded: ≥ G½, ≥ ½ NPT Flanges: ≥ DN25, ≥ 1” Hygienic fittings: - Clamp ≥ 1” - DIN32676, ISO2852 - Slotted nut ≥ DN25 - DIN 11851 |
|
Ambient, storage, and transport temperature |
-40 °C to 80 °C / -40 °F to +176 °F |
|
Materials |
|
|
Wetted Parts |
316L, Alloy C22 (2.4602), 316Ti (1.4571), Alloy C4 (2.4610) |
|
Process Seal |
FKM, FFKM, EPDM, FEPM |
|
Housing Material |
Plastic , aluminum , stainless steel |
|
Enclosure Rating |
IP 68 (25 bar) or IP69K |
|
Electrical |
|
|
Operating Voltage |
9.6 to 35 VDC |
|
Output |
Profibus PA Foundation Fieldbus 4 … 20 mA 4 … 20 mA/HART - two-wire Modbus Slave electronics for electronic differential pressure |
|
Approvals |
|
|
Scope |
ATEX / Europe FM / USA IEC / worldwide CSA / USA and Canada |
|
Explosion Protection |
Intrinsic safety Ex ia Pressure-tight encapsulation Ex d Protection through housing St Ex |
|
Ship Approval |
ABS, BV, CCS, DNV, GL, LR, RINA |
|
Overfill Protection |
WHG VLAREM II |
|
SIL Qualification |
SIL2 |
