VEGABAR 82 Pressure Indicator
[breadcrumb]
Featured Specifications
- CERTEC® measuring cell with robust ceramic designmeans long-term stability and high overload resistance.
- Measuring cell equipped with temperature sensor.
- Process temperature values can be displayed locally or conveyed with signal output.
- Capable of extremely small measuring ranges withhigh accuracy.
- Low maintenance costs thanks to wear-free measuring cell.
Description
The VEGABAR 82 pressure transmitter is used for reliable and effective process pressure and hydrostatic level measurement of liquids, gasses and vapours. With the addition of a secondary sensor, the VEGABAR 82 can be used for electronic differential pressure measurement.
The VEGABAR 82 is an economical solution for a multitude of shipboard and other industry applications.
Technical Specifications
|
Technical Data |
|
|
Pressure Measuring Range |
-1 … +100 bar/-100 kPa … +10 MPa (-14.5 … +1450 psig) |
|
Process Temperature |
-40 °C to 150 °C (-40 to +302 °F) |
|
Process Pressure |
-1 to 400 bar / -100 to 40,000 kPa / -14.5 to +5802 psig |
|
Deviation |
< 0.05 %; < 0.1 %; < 0.2 % |
|
Smallest Measuring Range |
+0.025 bar/+2.5 kPa (+0.363 psig) |
|
Process Fitting |

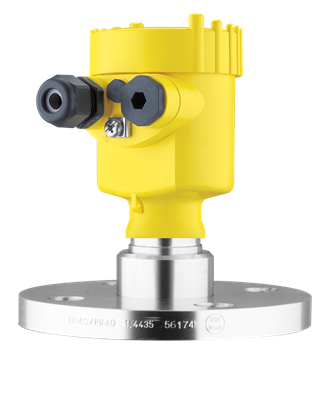

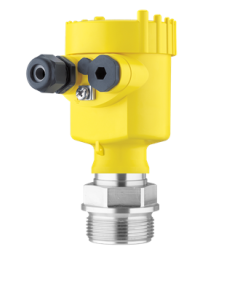

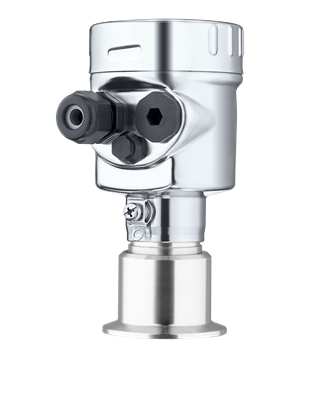

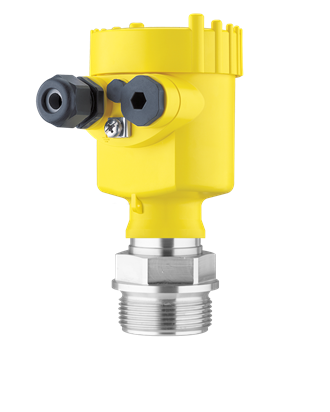

Threads from G½ Flanges from DN 15, ¾” Hygienic fittings: - Clamp ≥ 1” - DIN32676, ISO2852 - Slotted nut ≥ DN25 - DIN 11851 |
|
Ambient, storage, and transport temperature |
-40 °C to 80 °C / -40 °F to +176 °F |
|
Materials |
|
|
Wetted Parts |
316L, PVDF, Alloy, C4-plated, Sapphire-ceramic®. |
|
Process Seal |
FKM, FFKM, EPDM. |
|
Housing Material |
Plastic , aluminum , stainless steel |
|
Enclosure Rating |
IP 68 (25 bar) or IP69K |
|
Electrical |
|
|
Operating Voltage |
9.6 to 35 VDC |
|
Output |
Profibus PA Foundation Fieldbus 4 … 20 mA 4 … 20 mA/HART - two-wire Modbus Slave electronics for electronic differential pressure |
|
Approvals |
|
|
Scope |
ATEX / Europe FM / USA IEC / worldwide CSA / USA and Canada |
|
Explosion Protection |
Intrinsic safety Ex ia Pressure-tight encapsulation Ex d Protection through housing St Ex |
|
Ship Approval |
ABS, BV, CCS, DNV, GL, LR, RINA |
|
Overfill Protection |
WHG VLAREM II |
|
SIL Qualification |
SIL2 |
